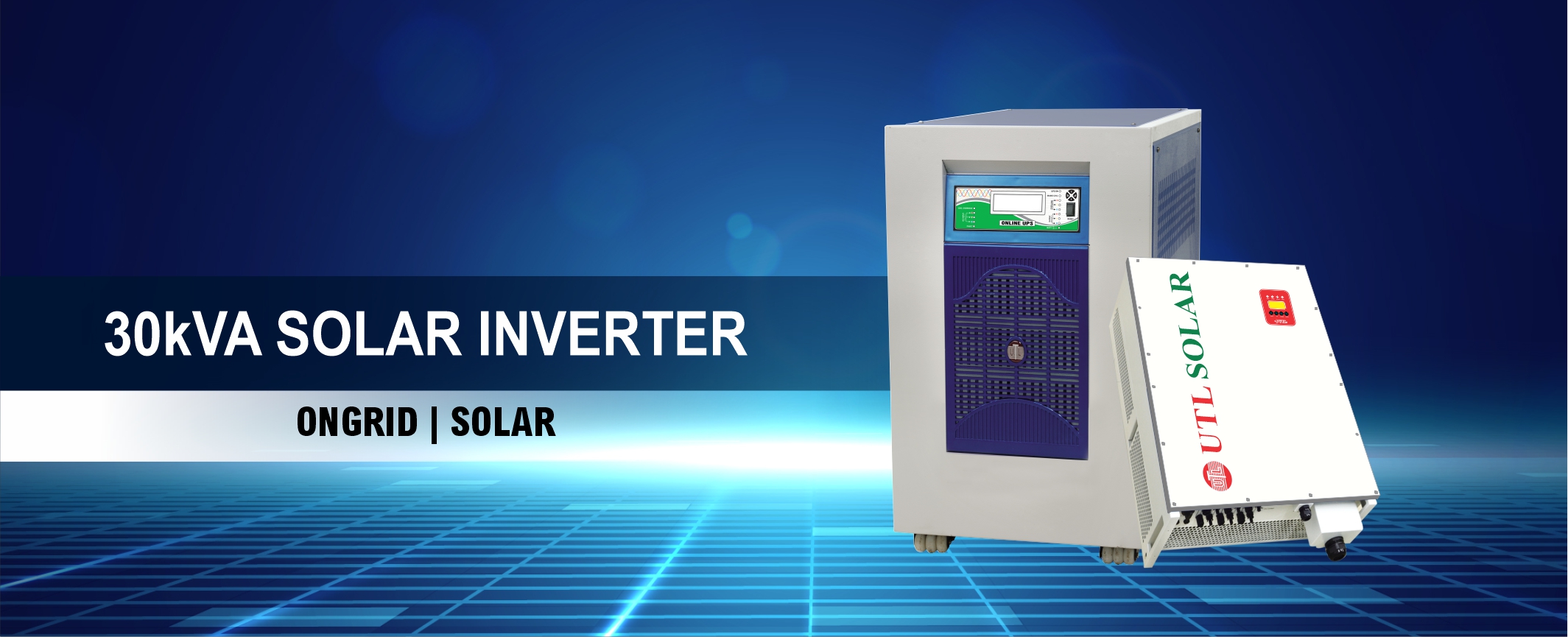

30kVA Solar Inverter
About 30kVA Solar Inverter
A 30kVA solar inverter is a high capacity 360V 3-phase solar inverter, powered with reliable, regulated and stabilized pure sine wave output. It is an aesthetically pleasing power converting system with over 98% maximum efficiency and is suitable for all types of home appliances and commercial establishments that require uninterrupted power supply.
The 30kVA solar inverter by UTL is also a high-performance power protection device that has been engineered to be energy efficient with minimum possibility of load failure. The inverter is IP65 and IP20 protected (as per the model) alongside several other protection functions that first run the load through the photo-voltaic panels and thereafter through the grid, if available. The combination of pulse-width modulation (PWM) with MPPT controller and other multi-level technologies enable it to track the maximum power of solar panel.
UTL’s 30kVa solar inverter provides a more flexible system configuration for medium and large solar power plants. There are unbeatable features in the 30kVA solar inverter that optimizes the performance of connected solar battery and enhances their expected working life. Except for the features, you will get many outstanding advantages here such as power density, modular design, easy installation and maintenance, and highly cost-effective. The 30kVA UTL solar inverter is worth every penny invested in it because of its high performance and durability.
30kVA On-Grid String Solar Inverter (3 Phase)
| Particular | Description |
| Model | UTL 30 GT |
| System Rating | 30kVA – 3 Phase |
| Max. DC Power | 39kW |
| Max. DC Voltage/Nominal DC Voltage | 1000V |
| MPPT Voltage Range | 250V – 950V |
| Full Load Voltage Range | 400V-800V |
| Normal DC Voltage | 620V |
| Min./Start DC Voltage | 200V – 250V |
| No. of MPP Trackers | 3 |
| Strings as per MPP Tracker | 2 |
| Max. Input Current per MPP Tracker | 26A |
| Normal AC Output Power | 30kW |
| Max. AC Output Power | 33kW |
| Normal AC Voltage | 400V |
| AC Voltage Range | 400V ± 20% |
| Normal AC Grid Frequency | 50/60Hz |
| AC Grid Frequency Range | 50/60Hz (± 5Hz) |
| Rated Output Current | 44A |
| Max. Output Current | 48A |
| THDI | <3% |
| AC Connection | 3W+N+PE/3W+P E |
| Topology | Transformerless |
| Maximum Efficiency | 98.3% |
| Euro-eta | 98.0% |
| All-Pole Fault Current Monitoring Unit | Yes |
| Ground Fault Monitoring | Yes |
| Operating Temperature Range | -25°C to +60°C |
| Noise Emission | <40dB |
| Protection Rating | IP65 |
| LCD Display | Yes |
| Cooling Concept | Convection |
| Interfaces | RS485/Wi-Fi |
| Dimension | 636mmX958mmX260mm |
| Weight | 61kG |
| MRP ( Inclusive of all Taxes ) | Rs. |
| Discounted Price ( Inclusive of all Taxes ) | Rs. 1,77,942.00 |
Silent Features
- Transformer-less inverter for better compatibility.
- Low harmonic current distortion (THDi<3%).
- IP65 certified solar product by UTL.
- Comes with Onboard SPDs for DC & AC sides.
- Supportable for Wi-Fi and monitoring applications.
- Manufactured with multiple protection levels.
- 5 years standard warranty for better reliability.
30kVA/360V Star Online Solar PCU
| Particulars | Description |
| Power Rating | 30kVA/360V |
| Voltage Range | 400V±20% Three-phase four-wire |
| Frequency | 50Hz±10% |
| Power Factor | 0.94 |
| Charger Topology | Buck |
| Connection Type | Terminal Block |
| Normal PV Power | 30kW |
| Voc (min-max) | 540V – 810V |
| Vmp | 430V – 730V |
| Switching Device | IGBT |
| Switching Freq. | 16KHz |
| No. of Charger Controller | One |
| Type of Charger | PWM with MPPT |
| Peak Efficiency (DC-DC) | 96% |
| Output Voltage | 220V/260V ±1% |
| Output Load Current | 104.3A |
| Output Efficiency (AC – AC) | >90%@Full Load |
| Output Frequency | 50Hz |
| Waveform | Pure Sine Wave |
| Transient response | <8 (10% – 90% Linear Load) |
| Voltage Harmonics | <3% (Linear Load) |
| Crest Factor | 3:1 |
| Voltage Regulation | ±1% |
| Frequency Regulation | ±0.05Hz |
| Alarm | Battery Low, Battery High, Overload |
| LEDs | UPS ON, CHG ON, Input R/Y/B High & low, Output Low-High, Overload, Fault, Battery Low/High, SPV Low/High, SPV CHG ON |
| Protections | Output Overvoltage/Under-voltage,
Overload, Output Short-circuit, Battery Overvoltage/under voltage, SPV Under Voltage/ Over Voltage, Input Under-Voltage/Over Voltage |
| Transfer Time | 0 msec |
| Extended Battery Charging | Optional |
| Caster Wheels | Yes |
| Operating Environment | 0-50° C |
| Operating Relative Humidity | (5%-95%) Non-condensed |
| Storage Environment | 0-75° C |
| Storage Relative Humidity | 0-95% |
| Degree of Protection | IP20 |
| Remote Monitoring | Ethernet (Optional) |
| Dimension (LXWXH) | 990x660x889 mm |
| MRP ( Inclusive of all Taxes ) | Rs. |
| Discounted Price ( Inclusive of all Taxes ) | Rs.4,24,122.00 |
Silent Features
- Short circuit, input under/over-voltage protection.
- Intelligent charge sharing.
- DSP based design Pure Sinewave
- Built-in rMPPT charge controller.
- Lightning, surge protection by SPD.
- Thermal Protection.
- Maximum Preference for Solar Power.
- Ethernet-based monitoring.
- Noiseless in operation.
- Robust Design – 20 years of Product life.
- AC and DC Parameter Configurable from LCD.
- DC- Charging Voltage Battery Charging Current, Battery Low Cut/High Cut.
- High Surge Capability (up to 300%) for starting heavy load.
- High Efficiency & High Reliability.
- Configurable Priority.
- Solar/Battery/Grid
- Solar/Grid/Battery
