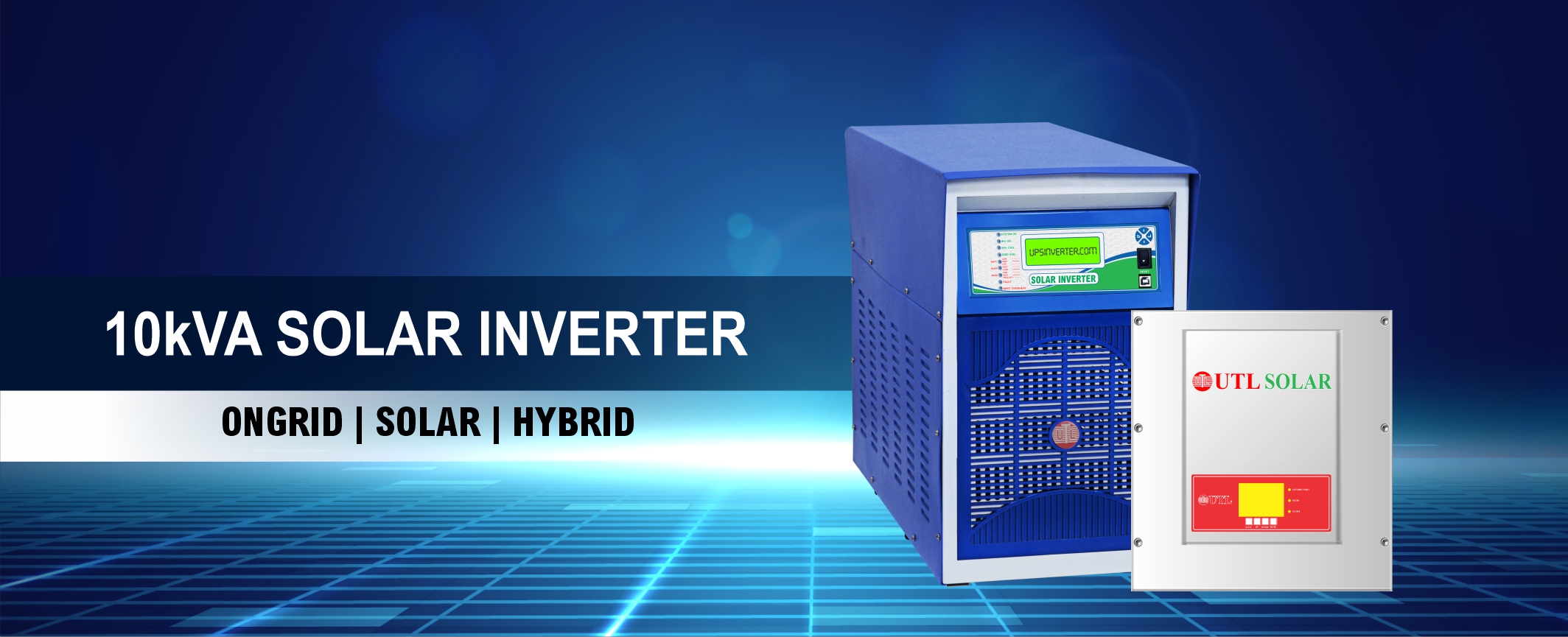

10kVA Solar Inverter
About 10kVA Solar Inverter
10kVA solar inverter is a 3 phase solar inverter with intelligent DSP controller/rMPPT technology solar charge controller that enables it to handle multiple algorithms efficiently. Its advance auto-features make sure that the inverter automatically switches to solar & battery mode as soon as there is a power cut, while during the day time solar power directly powers your home load to provide you maximum savings.
UTL 10kVA solar inverter are premium quality solar inverters that are designed to offer great flexibility during multiple operations. The performance level of these inverters is at their peak with maximum power saving. There inbuilt LCD screen and menu buttons allow you to customize different settings including voltage range, load priority, charging priority, and battery charging current.
The UTL solar continuously works on the reliability and unique features to harvest maximum energy from solar inverter solutions. In the same sense, it offers 10kVA solar inverter that is specially manufactured for running heavy power loads such as lighting loads like fans, lights, computers, printers, and multiple air conditioners. UTL’s 10kVA solar inverters are best to use or install at homes, offices, and commercial spaces.
10kVA/120V Alfa+ Solar PCU
| Particulars | Description |
| Solar PCU Capacity | 10kVA 120V |
| Input Voltage Range (Min-Max) | 200 – 550 VDC |
| Maximum PV Power Recommended | 10KW |
| MPPT Controller | DSP |
| Type of Charger | MPPT |
| Efficiency | 95% |
| Battery Low Buzzer | Battery Low Cut +0.2 V |
| Battery Low Cut | 10-11.7 V |
| Battery High Cut (INV.) | SPV Present-SPV CHG. REF +1V for 15Sec, SPV CHG. REF +1.5V for 2Sec |
| Battery High Cut (INV.) | SPV Absent-SPV CHG. REF for 15Sec, SPV CHG. REF +0.2V for 2Sec |
| Battery Charging Voltage by SPV | 13.5-16 V |
| Battery Charging Current by SPV | 12-60 A |
| Battery Charging Voltage by Grid | 13.0-15.5 V |
| Battery Charging Current by Grid | 6-15 A |
| Grid Low Cut Voltage (IT Mode/Normal) | NA/120-200 V |
| Grid High Cut Voltage (IT Mode/Normal) | NA/245-280 V |
| Grid Charging | Enable/Disable |
| IT Load | Enable/Disable |
| Operating Mode | Smart/PCU/Hybrid |
| Output Voltage Low | 170-190 V |
| Output Voltage High | 250-260 V |
| No Load Shut Down | Enable/Disable |
| Input Source | Grid/Genset |
| Grid Disconnect (Solar Available) PCU/SMART (Battery) | @14.5/Battery for 2minutes or 13.5/Battery-100% Current |
| Grid Reconnect (PCU Mode/Smart Mode) (Battery) | 11-12V |
| Temp. Compensation (Battery) | @3mV/cell/°C ; 18mV/Battery/°C |
| Inverter Switching Element | Mosfet |
| Inverter Control | PWM |
| Inverter Nominal Output Voltage | 220 VAC |
| Inverter Output Supply Phase | 1Phase, 3Wire |
| Inverter Output Waveform | Pure Sine Wave |
| Inverter Nominal Frequency | 50.0 Hz |
| Load Current | 27 A |
| Voltage Regulation | 1% |
| Output Voltage Distortion with 100% Linear Load | <3% |
| Peak Efficiency | >88 % |
| Cooling | Temp Controlled, Fan |
| Protections | Overload, Battery Low, Battery High, Output Low, Output High, Output Short Ckt., Overheat, Under Frequency, Over Frequency, Solar Panel Reverse |
| Display Parameters | Battery Voltage, Charging Current, Discharging Current, Charging KWH, Discharging KWH, Solar Voltage, Solar Current, Instantaneous Power, Cumulative Power, Grid Voltage, Grid Current, Grid Frequency, Output Voltage, Output Current, Output Frequency NLSD En/Dn, IT Load En/Dn Grid Charger En/Dn, Operating Mode PCU/SMT/HYD |
| Switches | Reset for System ON/OFF, UP, DOWN, BACK, ENTER (for LCD Configuration) |
| Indications | System ON, Inverter ON, SPV Charging, Grid Charging, Battery Low/High, Overload, Overheat, Mains Low, Mains High, Under Frequency, Over Frequency, NLSD, Fault |
| Degree of Protection | IP21 |
| Dimension (LxWxH) | 609 X 330 X 660 mm |
| Weight (Approx.) | 80 KG |
| MRP( Inclusive of all Taxes ) | Rs. |
| Discounted Price ( Inclusive of all Taxes ) | Rs. 1,24,881.00 |
Silent Features
- DSPic Based Pure Sine Wave Design.
- Inbuilt rMPPT Charge Controller.
- Maximum Preference for Solar Energy.
- USB Based Communication.
- 30 Days Data Logs Inbuilt
- AC and DC Energy Meter Inbuilt.
- GSM/GPRS Based Remote Monitoring and controlling.
- Robust Design for 20 years of product life.
- 2 years to 5 years of warranty.
- Reverse AC Voltage Protection.
- User-friendly and easily accessible LCD Display with all AC & DC Parameter Configurable by Display Switches and Digital LCD (20X4).
- User-Friendly Control: – Output Voltage, Charging Voltage – SPV/ Grid, Charging Current – SPV/Grid, Grid Reconnect, Battery Low.
- Priority-based working modes – Smart/PCU/Hybrid (for saving energy and money).
- NLSD, Alfa+ Solar PCU Grid Charging, IT Load – Enable/Disable by LCD.
10kVA/180V Alfa+ Solar PCU
| Particulars | Description |
| Solar PCU Capacity | 10KVA 180V |
| Input Voltage Range (Min-Max) | 300 – 625 VDC |
| Maximum PV Power Recommended | 10KW |
| MPPT Controller | DSP |
| Type of Charger | MPPT |
| Efficiency | 95% |
| Battery Low Buzzer | Battery Low Cut +0.2 V |
| Battery Low Cut | 10-11.7 V |
| Battery High Cut (INV.) | SPV Present-SPV CHG. REF +1V for 15Sec, SPV CHG. REF +1.5V for 2Sec |
| Battery High Cut (INV.) | SPV Absent-SPV CHG. REF for 15Sec, SPV CHG. REF +0.2V for 2Sec |
| Battery Charging Voltage by SPV | 13.5-16 V |
| Battery Charging Current by SPV | 12-60 A |
| Battery Charging Voltage by Grid | 13.0-15.5 V |
| Battery Charging Current by Grid | 6-15 A |
| Grid Low Cut Voltage (IT Mode/Normal) | NA/120-200 V |
| Grid High Cut Voltage (IT Mode/Normal) | NA/245-280 V |
| Grid Charging | Enable/Disable |
| IT Load | Enable/Disable |
| Operating Mode | Smart/PCU/Hybrid |
| Output Voltage Low | 170-190 V |
| Output Voltage High | 250-260 V |
| No Load Shut Down | Enable/Disable |
| Input Source | Grid/Genset |
| Grid Disconnect (Solar Available) PCU/SMART (Battery) | @14.5/Battery for 2minutes or 13.5/Battery-100% Current |
| Grid Reconnect (PCU Mode/Smart Mode) (Battery) | 11-12V |
| Temp. Compensation (Battery) | @3mV/cell/°C ; 18mV/Battery/°C |
| Inverter Switching Element | Mosfet |
| Inverter Control | PWM |
| Inverter Nominal Output Voltage | 220 VAC |
| Inverter Output Supply Phase | 1Phase, 3Wire |
| Inverter Output Waveform | Pure Sine Wave |
| Inverter Nominal Frequency | 50.0 Hz |
| Load Current | 36 A |
| Voltage Regulation | 1% |
| Output Voltage Distortion with 100% Linear Load | <3% |
| Peak Efficiency | >88 % |
| Cooling | Temp Controlled, Fan |
| Protections | Overload, Battery Low, Battery High, Output Low, Output High, Output Short Ckt., Overheat, Under Frequency, Over Frequency, Solar Panel Reverse |
| Display Parameters | Battery Voltage, Charging Current, Discharging Current, Charging KWH, Discharging KWH, Solar Voltage, Solar Current, Instantaneous Power, Cumulative Power, Grid Voltage, Grid Current, Grid Frequency, Output Voltage, Output Current, Output Frequency NLSD En/Dn, IT Load En/Dn Grid Charger En/Dn, Operating Mode PCU/SMT/HYD |
| Switches | Reset for System ON/OFF, UP, DOWN, BACK, ENTER (for LCD Configuration) |
| Indications | System ON, Inverter ON, SPV Charging, Grid Charging, Battery Low/High, Overload, Overheat, Mains Low, Mains High, Under Frequency, Over Frequency, NLSD, Fault |
| Degree of Protection | IP21 |
| Dimension (LxWxH) | 609 X 330 X 660 mm |
| Weight (Approx.) | 103 KG |
| MRP ( Inclusive of all Taxes ) | Rs. |
| Discounted Price ( Inclusive of all Taxes ) | Rs. 1,36,151.00 |
Silent Features
- DSPic Based Pure Sine Wave Design.
- Inbuilt rMPPT Charge Controller.
- Maximum Preference for Solar Energy.
- USB Based Communication.
- 30 Days Data Logs Inbuilt
- AC and DC Energy Meter Inbuilt.
- GSM/GPRS Based Remote Monitoring and controlling.
- Robust Design for 20 years of product life.
- 2 years to 5 years of warranty.
- Reverse AC Voltage Protection.
- User-friendly and easily accessible LCD Display with all AC & DC Parameter Configurable by Display Switches and Digital LCD (20X4).
- Priority-based working modes – Smart/PCU/Hybrid (for saving energy and money).
- NLSD, Alfa+ Solar PCU Grid Charging, IT Load – Enable/Disable by LCD.
- User-Friendly Control: – Output Voltage, Charging Voltage – SPV/ Grid, Charging Current – SPV/Grid, Grid Reconnect, Battery Low.
10kVA On-Grid String Solar Inverter
| Particular | Description |
| Model | UTL 10 GT |
| System Rating | 10kVA/120V |
| Max. DC Power | 11.5kW |
| Max. DC Voltage/Nominal DC Voltage | 1000V |
| MPPT Voltage Range | 100V – 490V |
| Min./Start DC Voltage | 250V – 950V |
| Max. AC Output Power | 11kW |
| Normal AC Voltage | 400V |
| AC Voltage Range | 400V ± 20% |
| Normal AC Grid Frequency | 50/60Hz |
| AC Grid Frequency Range | ±5Hz |
| Max. Output Current | 17A |
| THDI | <3% |
| Topology | Transformerless |
| Maximum Efficiency | 97.6% |
| All-Pole Fault Current Monitoring Unit | Yes |
| AC Connection | 3W+N+PE/3W+P E |
| Ground Fault Monitoring | Yes |
| Operating Temperature Range | -25°C to +60°C |
| Noise Emission | <40dB |
| Protection Rating | IP65 |
| LCD Display | Yes |
| Interfaces | RS485/Wi-Fi |
| Dimension | 553mmX715mmX228mm |
| Weight | 35 kG |
| MRP ( Inclusive of all Taxes ) | Rs. |
| Discounted Price ( Inclusive of all Taxes ) | Rs. |
Silent Features
- Transformer-less inverter for better compatibility.
- Low harmonic current distortion (THDi<3%).
- IP65 certified solar product by UTL.
- Comes with Onboard SPDs for DC & AC sides.
- Supportable for Wi-Fi and monitoring applications.
- Manufactured with multiple protection levels.
- 5 years standard warranty for better reliability.
10kVA/120V Sigma+ Hybrid Solar Inverter
| Particular | Description |
| System Rating | 10kVA/120V |
| Operating DC Voltage | 120V |
| Input Voltage Range (Min-Max) | 200V – 550V |
| Maximum PV Power | 10kW |
| Battery Low Buzzer | Batt. Low Cu +0.2 |
| Battery Low Cut | 10V – 11.7V |
| Battery Charging Voltage | 13.5V – 16V |
| Grid Charging Voltage (Equalize) | After 30 Days |
| Grid Reconnect @ Battery Voltage | 11V – 12V |
| Output Phase | Single Phase, 3 Wire |
| Nominal Output voltage | 220V |
| Nominal Frequency | 50Hz±1% |
| Output Waveform | Pure Sine wave |
| Typical Efficiency | ≥85% |
| Charge Controller | MPPT |
| Peak Efficiency | 95% |
| Audible Noise @ 1 meter | 50dB |
| Protection | Overload, Battery Low, Battery High, Output Low, Output High, Input Low, Input High, SPV Low, SPV High, Output Short Ckt., Input Short Ckt., Over Temp., Under Frequency, Over Frequency, Solar Panel Reverse, Anti-islanding, Surge Protection, Grid/Solar Charger Open Circuit, NTC Open. |
| LED Indication | System ON, Inv. ON, SPV Charging, Grid Charging, Grid Tie ON, Battery Low/High/NLSD, Overload / Overheat, Mains Low / Mains High, Under frequency/Over frequency, Operating modes (smart, Hybrid, PCU and Grid export), Fault, HOE |
| Switches | Reset for System ON/OFF, UP, DOWN, BACK, ENTER (for LCD Configuration) |
| Standard Compliance | IP-21 |
| Weight | 70Kg |
| Dimension L x W x H | 584 x 330 x 660 mm |
| MRP ( Inclusive of all Taxes ) | Rs. 2,34,349.00 |
| Discounted Price ( Inclusive of all Taxes ) | Rs. 1,43,614.00 |
Silent Features
- DSP based unique pure sine wave design.
- Inbuilt high-efficiency rMPPT charge controller.
- Stand-alone & grid-interactive working modes.
- IEC 61683, 61727, 60529, 60068-2 (1,2,14,30) & 62116 certified.
- Inbuilt AC & DC energy meter with USB based communication.
- GSM/GPRS based remote monitoring & controlling (Optional).
- LCD display with all AC and DC parameters.
- Robust design with reverse AC voltage protection.
- Priority-based working modes – Smart/PCU/Hybrid.
- Maximum preference for solar power.
- 20 years of product life & 2-5 years warranty.
- Easy to install, maintain & access.
10kVA/180V Sigma+ Hybrid Solar Inverter
| Particular | Description |
| System Rating | 10kVA/180V |
| Operating DC Voltage | 180V |
| Input Voltage Range (Min-Max) | 300V – 625V |
| Maximum PV Power | 10kW |
| Battery Low Buzzer | Batt. Low Cu +0.2 |
| Battery Low Cut | 10V – 11.7V |
| Battery Charging Voltage | 13.5V – 16V |
| Grid Charging Voltage (Equalize) | After 30 Days |
| Grid Reconnect @ Battery Voltage | 11V – 12V |
| Output Phase | Single Phase, 3 Wire |
| Nominal Output voltage | 220V |
| Nominal Frequency | 50Hz±1% |
| Output Waveform | Pure Sinewave |
| Typical Efficiency | ≥85% |
| Charge Controller | MPPT |
| Peak Efficiency | 95% |
| Audible Noise @ 1 meter | 50dB |
| Protection | Overload, Battery Low, Battery High, Output Low, Output High, Input Low, Input High, SPV Low, SPV High, Output Short Ckt., Input Short Ckt., Over Temp., Under Frequency, Over Frequency, Solar Panel Reverse, Anti-islanding, Surge Protection, Grid/Solar Charger Open Circuit, NTC Open. |
| LED Indication | System ON, Inv. ON, SPV Charging, Grid Charging, Grid Tie ON, Battery Low/High/NLSD, Overload / Overheat, Mains Low / Mains High, Under frequency/Over frequency, Operating modes (smart, Hybrid, PCU and Grid export), Fault, HOE |
| Switches | Reset for System ON/OFF, UP, DOWN, BACK, ENTER (for LCD Configuration) |
| Standard Compliance | IP-21 |
| Weight | 78Kg |
| Dimension L x W x H | 584 x 330 x 660 mm |
| MRP ( Inclusive of all Taxes ) | Rs. 2,13,937.00 |
| Discounted Price ( Inclusive of all Taxes ) | Rs. 1,56,574.00 |
Silent Features
- DSP based unique pure sine wave design.
- Inbuilt high-efficiency rMPPT charge controller.
- Stand-alone & grid-interactive working modes.
- IEC 61683, 61727, 60529, 60068-2 (1,2,14,30) & 62116 certified.
- Inbuilt AC & DC energy meter with USB based communication.
- GSM/GPRS based remote monitoring & controlling (Optional).
- LCD display with all AC and DC parameters.
- Robust design with reverse AC voltage protection.
- Priority-based working modes – Smart/PCU/Hybrid.
- Maximum preference for solar power.
- 20 years of product life & 2-5 years warranty.
- Easy to install, maintain & access.
