Description

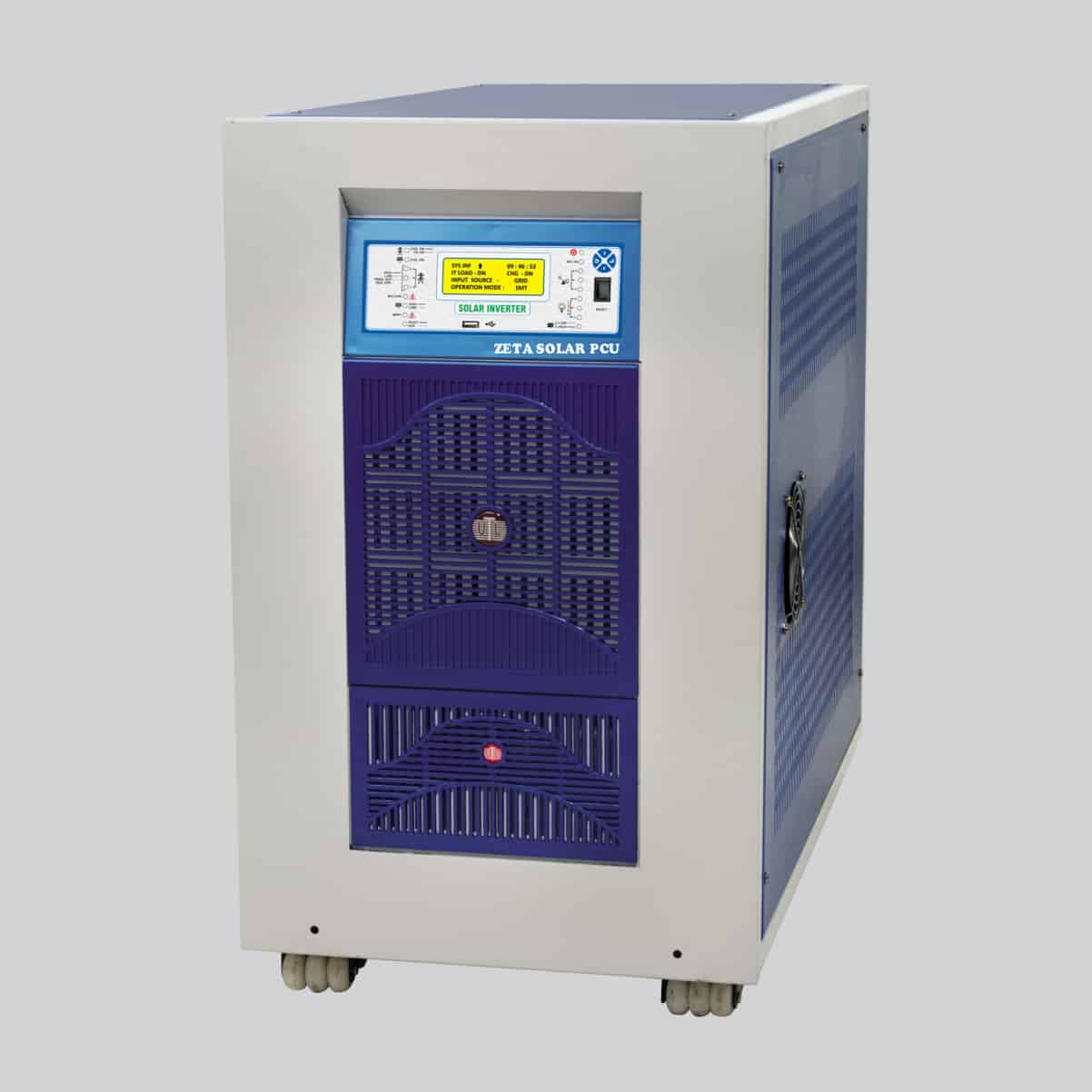

Zeta Hybrid Solar PCU 7.5kVA 96V

• DSP based design Pure Sine Wave, Built in MPPT charge controller.
• Maximum preference to Solar Power
• USB / RS485 based monitoring with 31 days data storage, DC and AC energy meter.
• Grid Interactive.
• Robust design-20 yrs product life
• High Efficiency and High Reliability
• Thermal Protection
• Fan ON/OFF – Temp Based
• Available from 10kVA to 20kVA
• AC and DC Parameter configurable from LCD.
• AC – Output Voltage
• Battery Charging Voltage (SPV & GRID)
• Battery Charging Current (SPV & GRID), Battery Low Cut
• Grid Charging, IT Load & Operating Mode – Enable/Disable by LCD.
