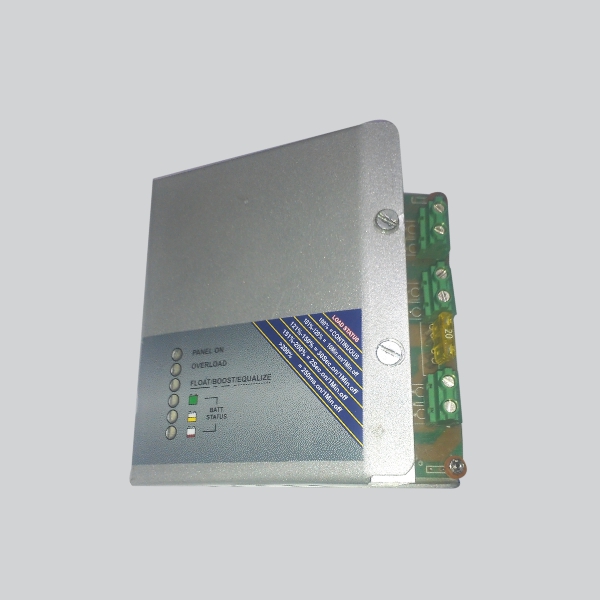

Solar Charge Controller (Normal Rating)
Solar Charge Controller is an Advanced Maximum Power Point Tracking battery charger for Photo-Voltaic (PV) systems. The controller features a smart tracking algorithm that maximizes the energy harvest from the PV and also provides load control to prevent over-discharge of the battery.
Description
Solar Charge Controller (Normal Rating)
Solar charge controller is an advanced Maximum Power Point Tracking battery charger for Photo-Voltaic (PV) systems. The controller features a smart tracking algorithm that maximizes the energy harvest from the PV and also provides load control to prevent over-discharge of the battery.
There are a number of protections that the Solar Charge Controller ensures. Solar Charge Controller stops reverse current flow from battery to solar array, it provides load short circuit protection, it provides Battery/Panel reverse protection through DC fuse and Overload protection also. Solar charge controller is an advanced Maximum Power Point Tracking battery charger for Photo-Voltaic (PV) systems.
- Better than PWM Solar Charge controllers
- Battery Health For Longer Life
- Extensive Electronic Protections
- Highly Reliable
- Small Siz
Better than PWM Solar Charge controllers
The UTL make rMPPT Charge Controllers are 30 % More efficient than normal charge controllers, as they employ Razor sharp Maximum Power Point Technology. The voltage at different point of times from Morning to evening varies and to tap it different input voltage selection for DC output source are required. MPPT does it accurately, so that you achieve maximum out of your investment in Solar panels. We employ both Perturb and Observe along with Incremental Conductance methods in parallel. We call it Razor sharp because it switches the point of solar output voltage very sharply. Now, you need to use only 70% of needed Solar Panels, thus saving 30% of investments, which makes the UTL rMPPT Charge Controller virtually absolutely Free.
Battery Health For Longer Life
The Solar Charge Controller feeds the battery installed to it a constant boost charging current until its voltage reaches 14.2V and the float current (which is very close to zero) then maintains this voltage above 13V. Thus reducing the float current ( flowing for the longest period during the entire process) to zero, ultimately resulting in much enhanced battery life keeping it fully charged simultaneously.
Extensive Electronic Protections
There are a number of protections that the UTL Solar Charge Controller ensures. Solar Charge Controller stops reverse current flow from battery to solar array, it provides load short circuit protection, it provides Battery/Panel reverse protection through DC fuse and Overload protection also.
Highly Reliable
Solar Charge Controller is very highly reliable. This is due to the various protections, as discussed above, included in it.
Small Size
Solar Charge Controller is very small in size and thus it also reduces the overall size of the system.
