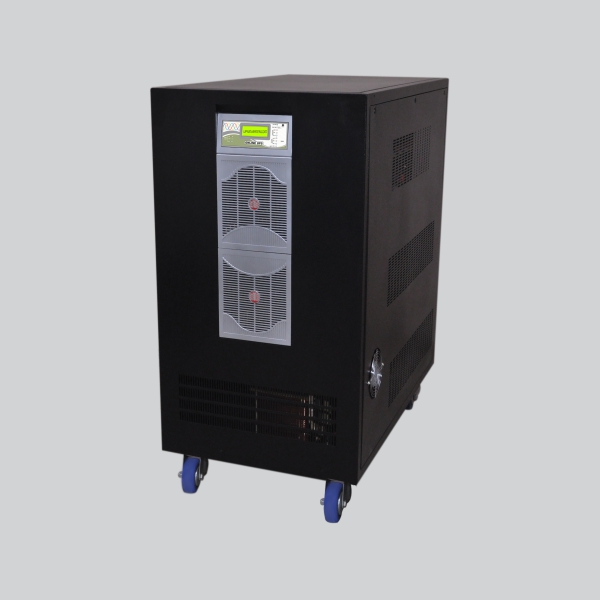

newGEN Online UPS 20kVA to 40kVA
UTL newGEN PFC Online UPS is an Uninterruptible Power Supply incorporating double-conversion Technology. The double conversion principle eliminates all power disturbances in the mains supply. newGEN UPS totally fit for running heavy loads like ACs, Industrial Motors and Pumps at gas stations etc. Even highly sensitive medical equipment such as life support systems works flawlessly with this UPS.
Available in:- Three phase-in – Single phase-out
Description
newGEN Online UPS 20kVA to 40kVA
UTL newGEN PFC online ups provide an independent, no breaking source of clean, stable, transient free uninterrupted power supply with output neutral bonded to the ground. This protects critical loads against power line disturbances and loss of commercial power. It provides regulated Sinusoidal Output Voltage under several Input conditions such as power failure, surge, sag, spikes, noise, frequency instability and harmonic distortions. The true advantage of the newGEN PFC Online UPS is its ability to provide an electrical firewall between the incoming utility power and your sensitive electronic equipment.
UTL Online UPS comprises a rectifier, an auto float cum boost charger, battery-backed inverter with under-voltage, over-voltage, short-circuit protection along with a high degree of Input to Output isolation. The amplification stage has IGBT technology for pure sine wave output.
- IGBT based charger
- Isolation transformer
- High-Performance DSP based design
- Pure Sine Wave Output with zero changeover time
- Four line display (20*4)
- User-friendly control setting by Display
- Local and Remote monitoring (Optional)- By GSM and Ethernet
- Extensive electronic protections
- Typical Applications
IGBT Based Charger
UTL newGEN PFC Online UPS turns out to be more like a savings account for the user. Being IGBT based this UPS has a power factor of a whopping 0.95 whereas it is just 0.7 in a parallel SCR based UPS. Because of having a power factor which is relatively higher the newGEN PFC Online UPS helps to save up to 40% more power which in turn leads in large saving during its period of use.
Isolation Transformer
UTL newGEN PFC online UPS has an inbuilt isolation transformer, this helps in giving a better impedance matching of a critical load to an electrical circuit. Totally fit for use in hospitals, the isolation transformer in the newGEN PFC Online UPS protects the sensitive equipment. UTL newGEN PFC Online UPS suits Indian power conditions to its best making it installable anywhere from a high-Tech city to any village of India.
Fast controlling with digital signal processing based design to deal with input voltage transients.
Pure Sine Wave Output with Zero Changeover Time
UTL’s newGEN PFC Online UPS is a High-Frequency PWM Technology Based “True Online” Double Conversion UPS System with IGBTs at the Inverter Stage, thus provides pure Sine wave output with high reliability and efficiency. Pure sine wave output reduces audible and electrical noise in appliances thus appliances like fan, tube light won’t make any humming noise.
Four Line Display (20*4)
Easier interface with bigger LCD display and easy to operate with four arrow keys. Four lines LCD display Battery status, Output parameters, Grid parameters.
User-friendly Control Setting by Display
Settable Battery low cut/High cut: Battery low voltage cut can be configured according to battery health and battery type.
Unique configurable output feature: Settable output offers the opportunity to run different types of load which works on different AC voltage.
Local and Remote Monitoring (Optional)- By GSM and Ethernet
It monitors the real-time status of the system from anywhere.
Extensive Electronic Protections
Extensive protections like Input low/High voltage, Output low/High voltage, Battery low/High, Output short circuit, overheat, Overload.
Typical Applications
- IT equipment and systems (computers, printers, monitors etc.)
- Process controls, testing & measuring instruments.
- Electronics health-care equipment & Life-support systems in hospitals.
- Security lighting & Control centers
- Safety systems in power stations
- Audio-visual equipment
- CNC Machines
- Embedded Machines etc.
