EV Battery Charger 48V/40A

■ High efficiency and highest power density Typical 93%
■ Digitalized control Digitalized Primary and secondary controls could realize excellent monitoring and regulation.
■ Disconnect mains when hazardous input will disconnect mains to protect itself. When it can not sustain the input voltage.
■ Lower interference and excellent susceptibility give module better reliability
■ High reliability design One fan front-to-back air flow with latest thermal solution and experienced electric synthesize ensure suitable
working environment and high reliability.
■ Excellent EMC performance

Description

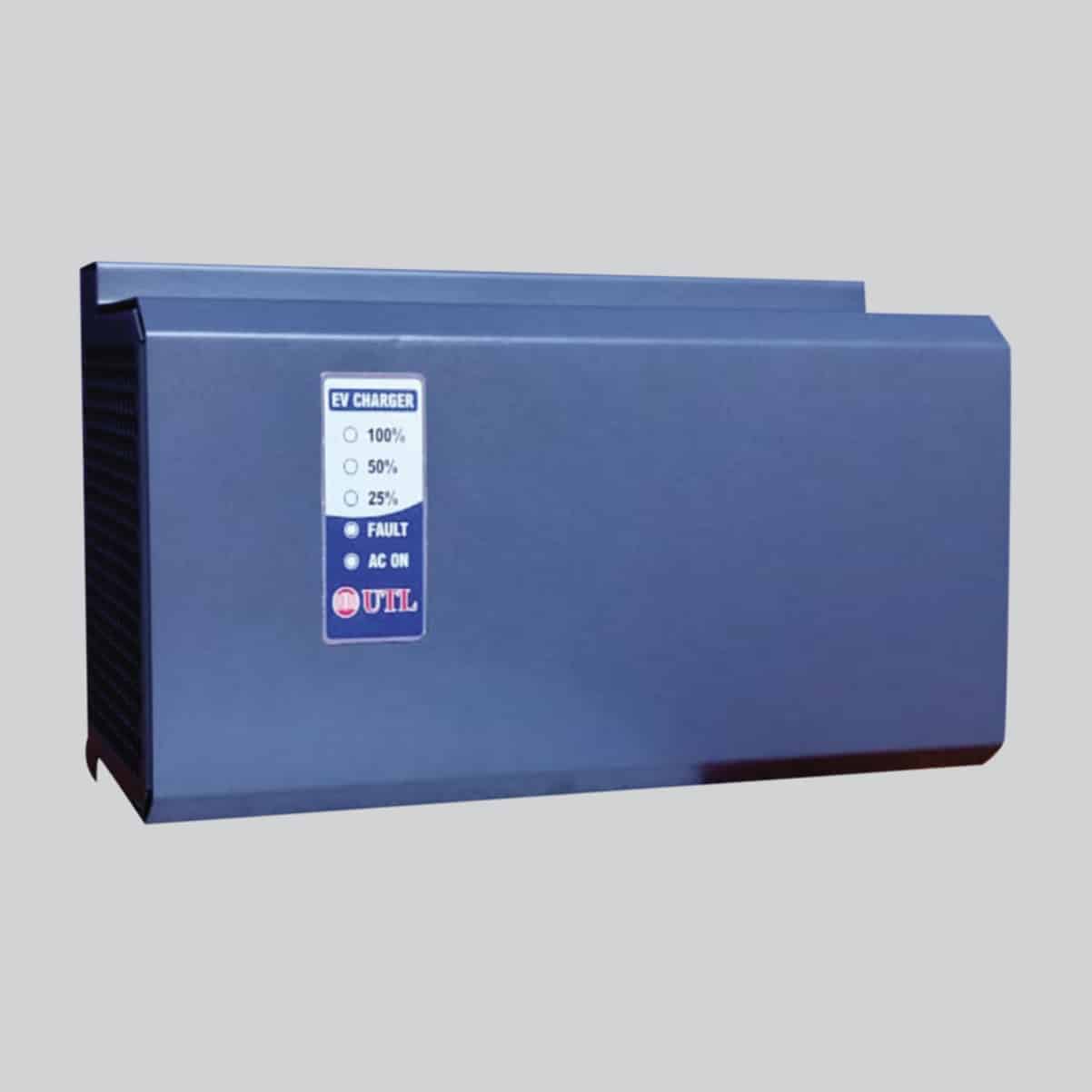

EV Battery Charger 48V/40A

UTL EV charger is SMPS based fully automatic systems with powerful micro controller that provide smart charging in battery type EV SMF, Lead Acid. It is equipped with multiple battery protection feature like overload, short circuit and Battery reverse protections . It also enhances battery life as well as save electricity which is embedded into robust cabinet with compact design.

■ High efficiency and highest power density Typical 93%
■ Digitalized control Digitalized Primary and secondary controls could realize excellent monitoring and regulation.
■ Disconnect mains when hazardous input will disconnect mains to protect itself. When it can not sustain the input voltage.
■ Lower interference and excellent susceptibility give module better reliability
■ High reliability design One fan front-to-back air flow with latest thermal solution and experienced electric synthesize ensure suitable
working environment and high reliability.
■ Excellent EMC performance
