3kW Solar Ongrid System | Eligible for Solar Subsidy
₹141,390.00 (Inclusive of all Taxes)
| Particulars | Description |
| Solar Inverter | UTL 3.3 F1 GT – GXS |
| Inverter Warranty | 10 Years |
| Solar Panel | 525W TopCON DCR Bi-facial (Half-cut) Solar Panel x 6 |
| Solar Module Product Warranty | 10 Years |
| Solar Panel Output Warranty | 27 Years |
| Installation Materials | ACDB & DCDB Box Lightning Arrester Earthing Materials HDPE Conduit MC4 Connectors |
Description

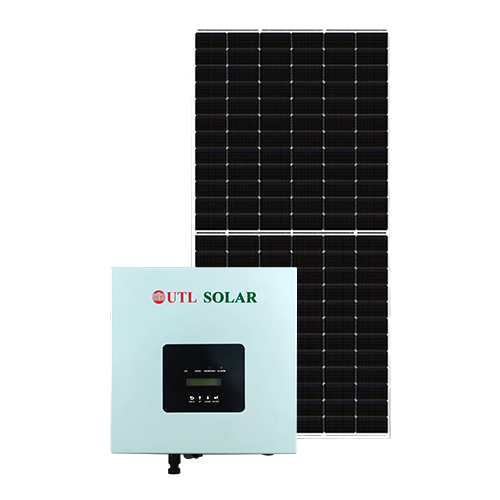

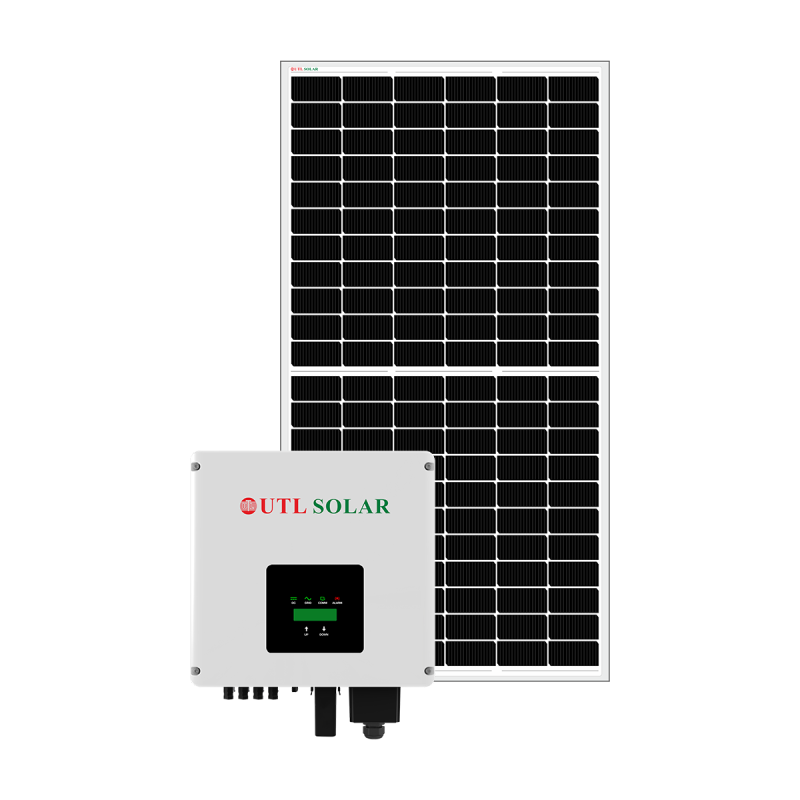

The UTL 3kW Grid Tie Solar System generates 12-15 units of electricity per day, making it perfect for homes and small businesses. It comes with high efficiency ALMM approved solar panels with 27 years of linear output warranty and single phase MPPT ongrid inverter with 10 years onsite warranty. With excellent customer service and the best price in the market, it’s a cost-effective solution for reducing electricity bills while promoting clean, sustainable energy.
Unique Features of On Grid Inverter
- Low Startup Voltage
- PV Overload Up to 30%
- DC switch available on above 4.2kW
- Wide AC Voltage Range (160V to 290V).
- Working Temperature Up to 65°C
- AC & DC Side Type-II 20kA SPD (Double Surge Protection)
- Less Noise Emission >25dB
- Remote Monitoring through UTL SOLAR App
- High MPPT Efficiency Up to 99%
- Power Export Limiting
- Easy Installation & Low Maintenance
Solar Kit Items
| Item No | Description of Items | Specification |
| 1 | SOLAR PV MODULE | 525W TopCON DCR Bi-facial (Half-cut) Solar Panel X 6 |
| 2 | UTL ON GRID INVERTER | UTL 3.3F1GT-GX |
| 3 | DCDB 1 IN 1OUT WITH SPD & FUSE | IP65 BOX, 20A DC Fuse for each string & (DC SPD II) 600V |
| 4 | ACDB 3 KW | 2 Pole 25 Amp MCB + AC SPD Type 2 + IP 65 Polycarbonate Enclosure |
| 5 | 2 FEET HDG STRUCTURE 80 MICRON MINIMUM | Designed for local wind (160Km/hr Maximum Speeds) and weather conditions |
| 6 | DC CABLE (Red & Black) | 1CX4 SQmm Cu. Flexible DC Cable |
| 7 | Inverter to ACDB (AC CABLE) | 2C*4 SQmm Cu. Flexible Cable |
| 8 | ACDB to LT PANEL (AC CABLE) | 2C*4 SQmm Cu. xlpe armoured cable |
| 9 | EARTHING ROD | GI earthing rod 2 mtr Length (50MM DIA) / Copper earthing rod 2 mtr Length rod (14MM DIA) |
| 10 | EARTHING CHEMICAL BAG | 25 kg earthing chemical bag |
| 11 | EARTHING CHAMBER | 300MM DIA |
| 12 | Earthing Cable for LA | 1C x 10 SQmm – Cu. Flexible Cable |
| 13 | Earthing Cable for DC & AC | 1C x 6 SQmm – Cu. Flexible Cable |
| 14 | Ring Type Thimble | 6SQMM |
| 15 | Ring Type Thimble | 10SQMM |
| 16 | PIN Type Thimble | 4 SQMM |
| 17 | PIN Type Thimble | 6 SQMM |
| 18 | SS304 Nut bolt with Washer | M8x30mm |
| 19 | HDPE Conduit (25 mm) | UV protected (25mm) |
| 20 | Elbow (25 mm) | UV protected (25mm) |
| 21 | T Bend (25 mm) | UV protected (25mm) |
| 22 | I bend (25 mm) | UV protected (25mm) |
| 23 | PU FOAM | PU foam bottle 750ml |
| 24 | Saddle | UV protected |
| 25 | Gitti | UV protected |
| 26 | Ferrul | Tube type ferrul |
| 27 | Screw | UV protected |
| 28 | Cable Tie – 300 | UV protected nylon Cable Tie |
| 29 | Danger Sign (AC+DC) | UV protector (UTL) |
| 30 | MC4 Connectors with pin | Solar Connector MC4 DC 1000V 30A IP67 Male-Female |
| 31 | Electrical Tape R,B,B,G | red-1, blue-1, black-1, green-1 |
| 32 | LA with HDG Stand | copper Bonded LA with 2 Mtr stand |
| 33 | Flexible Pipe | PVC Flexible Pipe 25mm |
Steps to Purchase
- Select the product variant that best meets your needs.
- Complete your order by making the payment based on the listed price.
- UTL Solar will connect you with an authorized Channel Partner for further assistance.
- The Channel Partner will request essential documents for verification.
- A convenient site visit will be arranged to assess your requirements.
- You will receive a detailed quotation covering installation charges, liaison fees, and any additional structural costs.
- The authorized Channel Partner will handle the installation with professionalism and care.
- Settle the installation and associated charges directly with the Channel Partner.
- Once the installation payment is complete, UTL Solar will promptly ship your product to your location.
Important Points to Remember
- Eligibility for subsidies will be subject to evaluation and approval.
- UTL Solar is responsible for the product only.
- UTL Solar will not be held accountable for installation services.
- Installation and maintenance services will be managed exclusively by the authorized Channel Partner.
- Structural and installation charges are not included in the listed product price.
Order Cancellation Policy
- Orders can be cancelled before the product is shipped.
- A site visit fee of Rs. 750 will be deducted from the refund amount.
- Once the product has been dispatched, cancellations will not be accepted.
Technical Specification
| Specifications | Ratings |
| Max. DC Input Power | 3.9kW |
| MPPT Operating Range | 70V∼500V |
| No. of MPPT Trackers | 1 |
| Max Efficiency | 97.5% |
| MPPT Efficiency | >99% |
| Weight (Inverter) | 4.8 Kg |
| Noise Emission | <35dB |
Recommended Load
| Appliances | Average Consumption Rate | Usage (In no. of hours per day) | Total Units Consumed (In kWh) |
| LED Bulbs | 0.06 | 12 hours | 2 |
| Ceiling fans | 0.12 | 18 hours | 2.8 |
| LED TV | 0.12 | 6 hours | 0.5 |
| Washing Machine | 0.5-1.0 | 1 hour | 1 |
| Refrigerator | 0.2 | 10 hours | 2 |
| Window AC (1.5 Ton) | 2 | Not Recommended | NA |
| Split AC (1.5 Ton) | 2.5 | Not Recommended | NA |
| Cooler | 0.3 | 4 hours | 1.2 |
| Water Pump (1 HP) | 1 | Not Recommended | NA |
Subsidy Details
Price of 3kW Solar System with Subsidy
The PM Surya Ghar: Muft Bijli Yojna is set to bring solar power to 1 crore homes, offering up to 300 units of free electricity per month. Here’s the updated rooftop solar price list for 3kW solar system with subsidy:
| State | Total Subsidy Applicable |
| Uttar Pradesh | ₹1,08,000 |
| Gujarat | ₹78,000 |
| Maharashtra | ₹78,000 |
| Haryana | ₹78,000 |
3 Simple Steps to Claim Subsidy
- Submit your application online on the national portal of Rooftop Solar.
- Choose a suitable vendor.
- Wait till you get the applicable subsidy amount directly in your bank account.
Terms and Conditions
- Only residential solar panel systems are eligible.
- Only On grid and hybrid solar systems are eligible.
- No subsidy is applicable for systems larger than 10kW.
FAQ
1. What is the total cost of the 3kW solar system without subsidy?
The total cost of the 3kW solar system varies based on the location, components, and vendor pricing. For detailed pricing, contact us directly or request a quote.
2. Can I run air conditioners with this 3kW solar system?
The system can handle light to medium loads but is not recommended for running high-power appliances like ACs. For AC usage, consider a higher-capacity solar system.
3. What happens if my electricity consumption exceeds solar generation?
When consumption exceeds solar generation, the system will automatically draw power from the grid to ensure uninterrupted electricity supply.
4. Does this system work during a power outage?
This is an on-grid system and requires grid availability to function. For power backup during outages, consider a hybrid solar system with battery storage.
5. Is maintenance required for the inverter and panels?
Minimal maintenance is needed:
- Inverter: Periodic cleaning and inspection every 6-12 months.
- Panels: Clean with water and a soft cloth every few weeks to remove dirt and debris.
6. How do I monitor the system’s performance?
UTL solar inverter comes with remote monitoring through the UTL Solar App, allowing you to track power generation, consumption, and savings in real time.
7. How long does it take to recover my investment in this solar system?
Depending on your electricity consumption and state subsidy, the payback period typically ranges from 3 to 5 years.
8. What if my roof is not suitable for solar panels?
We recommend a site survey to evaluate your roof. If it’s unsuitable, ground-mounted systems or other alternatives can be considered.
9. Can I expand my system in the future?
Yes, the system supports future expansion. Additional panels and higher-capacity inverters can be integrated based on your requirements.
10. Is the subsidy applicable for all types of solar systems?
No, the subsidy is only applicable for on-grid and hybrid solar kits(up to 10kW) installed for residential purposes.
